1、 Product Introduction

The W70 is a miniature three-axis dual light gyroscope stabilization pod that integrates a long wave uncooled infrared camera, a 13 megapixel high-definition visible light camera, and a gyroscope stabilization platform. The CGTD070 stabilized image pod has the characteristics of small size, light weight, easy portability, and high reliability. It can be mounted on micro unmanned aerial vehicles, achieving real-time video transmission of visible light and infrared, and has the ability to work 24/7.

2、 Application scenarios

Various micro unmanned aerial vehicles (multi rotor, fixed wing, helicopter, etc.), unmanned vehicles, unmanned boats, and unmanned reconnaissance equipment.

3、 Power supply and power consumption

Power supply DC10V~ dc15v@3a ;

Stable power consumption ≤ 8W;

4、 Interface

Video: Network, HDMI;

Control: TTL serial port, network, SBUS;

Storage: SD card storage;

Mechanical interface: Please contact our customer service personnel

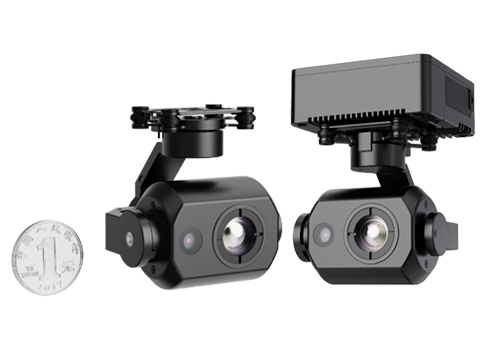

5、 Physical pictures
