1、 Overview

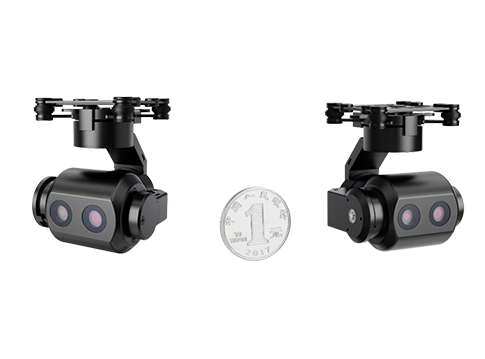

The W55 gimbal adopts a three frame gyroscope stable control, with an embedded gimbal threading form. It is equipped with a ten million level visible light CMOS sensor and a star level visible light CMOS sensor, with two different field of view angles. It can output high-definition visible light videos of 1080P in real time, and the gimbal component has target locking and tracking functions.

2、 Frame angle

Azimuth angle: -90 °~+90 °;

Pitch angle: -120 ° to+90 °;

Roll angle: -30 ° to+30 °;

Stable accuracy: 0.02 ° (1) σ， Disturbance 0.5 ° @ 1Hz)

3、 CMOS imaging sensor indicators

1) Million level CMOS

Pixel: 13 million;

Focal length: 3.5mm;

Field of view angle: 70.4 ° (D) × 39.6 ° (V), error ± 5%;

Distortion: ≤ 5%;

Depth of field: 169cm~INF

Lens composition: 5P+1IR (band 650nm)

Real time video resolution: 1920 × 1080;

Maximum resolution for photography: 4K, 1920 × 1080;

Recognition distance: Under the condition of visibility not less than 8km, the target recognition distance for adults is greater than 200m;

2) Starlight level CMOS

Pixel: 2 million;

Focal length: 10.3mm;

Field of view angle: 30.9 ° (D), 17.4 ° (V);

Distortion: ≤ 0.7%;

Lens composition: 5P+1IR;

Real time video resolution: 1920 × 1080;

Maximum resolution for photography: 1920 × 1080;

Recognition distance: Under the condition of visibility not less than 8km, the target recognition distance for adults is greater than 350m;

4、 Power supply

DC9V~15V, steady-state power consumption 9W;

5、 Weight and volume

The weight of the pan tilt part is about 55g, and the volume is 44mm × 46 mm × 60mm;

The tracking servo board weighs approximately 35g and has a volume of 52mm × 52mm × 18mm;

The weight of the control box and bottom plate is about 20g (optional);

6、 Output interface

Video: Network, HDMI;

Control: TTL serial port, network, SBUS;

Storage: SD card storage;

7、 Environmental adaptability requirements

Working temperature: -40 ℃~+55 ℃;

Storage temperature: -45 ℃~+60 ℃;

Rain resistance performance: The system can operate normally under light rain conditions.
