1、 Product Introduction

The T130Pro-NM-35-1535 photoelectric pod consists of a temperature measuring non cooled infrared thermal imager, a 30x continuous zoom visible light camera, a laser rangefinder, a three-axis servo stabilized platform, and an image tracker. It has the characteristics of light weight, high stability and accuracy, and high integration, and can be applied to small and medium-sized unmanned aerial vehicles to complete tasks such as day and night reconnaissance, monitoring, and target positioning of target areas.

The photoelectric pod uses a temperature measuring non cooled infrared thermal imager and a visible light camera to detect, recognize, and track ground targets throughout the day, and outputs real-time infrared and visible light videos for task execution personnel to view.

Optoelectronic pods are mainly used in reconnaissance, border patrol, personnel search and rescue, forest fire prevention and other scenarios.

2、 Physical pictures

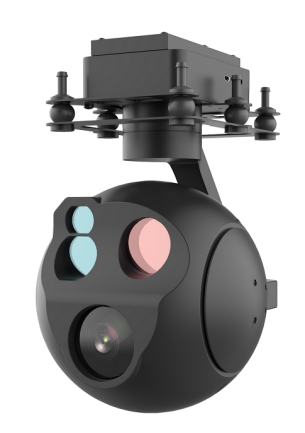

Figure 1 Product image

3、 Product features

a) Equipped with self inspection and fault reporting functions;

b) Capable of detecting long wave infrared and visible light bands, capable of outputting infrared and visible light images;

c) Equipped with laser ranging function;

d) Visible light has optical zoom, autofocus, manual focusing, and low illumination functions;

e) Infrared has 1X-4X electronic amplification and eight color palette switching functions;

f) Having the ability to move in three degrees of freedom: azimuth, pitch, and roll;

g) Equipped with various working modes such as automatic search, manual search, follow-up, attitude stability, and tracking;

h) In manual search mode, it has the function of receiving control station commands and completing pod operations;

i) Capable of isolating carrier disturbances and stabilizing aiming lines;

j) Equipped with lock/unlock target function, and the output image of the pod after locking the target is an image with a tracking box;

k) Equipped with automatic target tracking function, capable of automatically tracking targets, and capable of resisting natural interference;

l) Equipped with memory tracking function, the target can be captured again in a short period of time after a brief loss;

m) Capable of adjusting the size of the wave gate;

n) Equipped with tracking point switching function;

o) The target coordinates can be calculated based on laser ranging and drone attitude information;

p) It can communicate with the control station in both directions through RS422/100Mbps network, and output information such as infrared images, visible light images, system operation status, camera operation status, and optical axis position;

q) Equipped with network, synchronous 422, HDMI, HD-SDI multi-channel video output interfaces;

r) Capable of taking photos and recording videos;

s) Equipped with full screen temperature measurement function;

t) Equipped with full screen temperature recording function.

4、 Mount platform

Suspended fixed wing drones, rotor drones, tethered drones, etc.
