1、 Product Introduction
The S230TA photoelectric pod consists of an uncooled infrared thermal imager, a 30x continuous zoom visible light camera, a laser rangefinder, a two axis servo stabilized platform and an image tracker. It has the characteristics of light weight, high stability accuracy, and high integration, and can be applied to medium and large unmanned aerial vehicles to complete tasks such as day and night reconnaissance, monitoring, and target positioning of the target area.
The optoelectronic pod utilizes uncooled infrared thermal imagers and visible light cameras to detect, recognize, and track ground targets throughout the day, and outputs real-time infrared and visible light videos for task execution personnel to view.
The photoelectric pod is mainly used in reconnaissance, border patrol, personnel search and rescue, forest fire prevention and other scenarios.
2、 Physical image
Figure 1 Product image
3、 Product Features
a) Equipped with self inspection and fault reporting functions;
b) Capable of detecting long wave infrared and visible light bands, capable of outputting infrared and visible light images;
c) Visible light has optical zoom, automatic focusing, manual focusing, and low illumination functions;
d) Infrared has 3x continuous zoom, electronic amplification, and eight color palette switching functions;
e) Equipped with laser ranging function;
f) Having the ability to move with two degrees of freedom, including azimuth and pitch;
g) Equipped with various working modes such as automatic search/manual search/follow-up/tracking;
h) In manual search mode, it has the function of receiving control station commands and completing pod operations;
i) Having the ability to isolate carrier disturbances and stabilize the line of sight;
j) Equipped with lock/unlock target function, and the output image of the pod after locking the target is an image with a tracking box;
k) Equipped with automatic target tracking function, capable of automatically tracking targets, and capable of resisting natural interference;
l) Equipped with memory tracking function, the target can be recaptured in a short period of time after being briefly lost;
m) Having the function of adjusting the size of the wave gate;
n) Equipped with tracking point switching function;
o) Target coordinates can be calculated based on laser ranging, pod azimuth and pitch angle, and drone attitude information;
p) It can communicate with the control station in both directions through the 100Mbps network/RS422, and output information such as infrared images, visible light images, system operation status, camera operation status, optical axis position, etc;
q) Equipped with HD-SDI/100Mbps network multi-channel video output interface;
r) Equipped with photo and video recording functions.
4、 Mount Platform
Suspended fixed wing drones, rotor wing drones, tethered drones, etc.
5、 Main technical parameters
Model | S230TA |
Infrared thermal imager |
Detector Type | Uncooled focal plane detector |
Working band | 8μm～14μm |
Detector resolution | 640×512 |
Pixel size | 12μm |
Focal length | 25mm-100mm zooming |
Viewing angle | 17.5°×14°～4.4°×3.52°（Error ≤ 5%） |
Colorize | 8 types |
Number doubling | 1～4X |
Noise equivalent temperature difference | NETD≤40mK |
MRTD | MRTD≤500mK |
Visible light camera |
Resolution ratio | 1920×1080 |
Response wave band | 0.4μm～0.9μm |
Pixel size | 2.8μm |
Optical zoom | 30X |
Mixed doubling | 60X |
Focal length | 4.3mm～129mm |
Viewing angle | 63.7°×35.8°～2.3°×1.3°(±5%) |
Zoom mode | Auto focus, manual focus |
Minimum illumination | 0.01Lux（black and white） |
Laser range finder |
Wavelength | 1535nm |
Maximum ranging distance | ≥6km（Under the condition of visibility ≥ 15Km） |
Minimum ranging distance | ≤20m |
Range Accuracy | ≤2m |
Ranging frequency | 1～10Hz adjustable |
Servo platform |
Azimuth angle | 360°×n（360 ° continuous rotation） |
Pitch angle | -120°～+90°（Upward positive） |
Frame angle accuracy | ≤0.06°（1σ） |
Stabilization precision | ≤0.05mrad（1σ） |
Angular position accuracy | ≤1mrad（1σ） |
Maximum turning speed | Azimuth ≥ 60 °/s, pitch ≥ 60 °/s |
Maximum turning acceleration | Orientation ≥ 100 °/s ²， Pitch ≥ 100 °/s ² |
System indicators |
Image tracking | Automatic tracking of selected targets (optional) |
Supply Voltage | 19V～36VDC |
Power | Stable power consumption: ≤ 30W |
Weight | ≤8.5Kg |
Volume | ≤231mm×265mm×316mm |
Interface |
Control interface | RS422/Baimeganet |
Video interface | HD-SDI/Baimeganet |
Storage interface | ≤128G memory card（Mini SD card） |
Picture format | jpg |
Video | avi |
Environmental adaptability |
Operation temperature | -20℃～＋60℃（-40 ℃ optional） |
Storage temperature | -45℃～＋65℃ |
Vibration conditions | The acceleration is 2g; 30 minutes in each of the vertical, horizontal, and vertical directions. |
Impact conditions | Peak acceleration 20g, duration 11ms |
Protection grade | Able to fly in light and moderate rain |
6、 Mechanical dimensions and installation interfaces

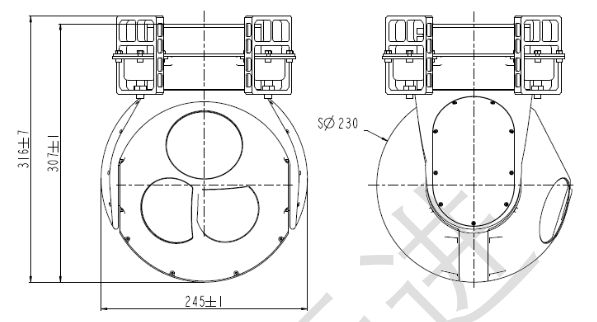

Figure 2 Product dimensions and installation interface diagram

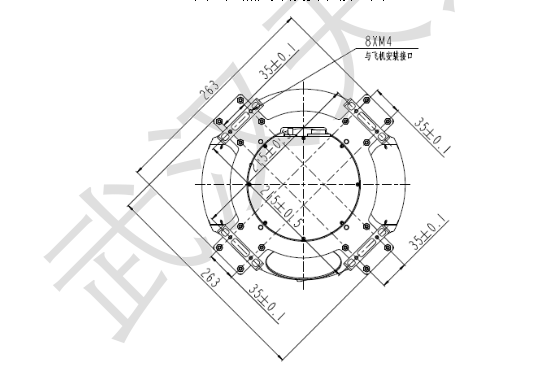

Figure 3 Product Installation Interface Diagram
